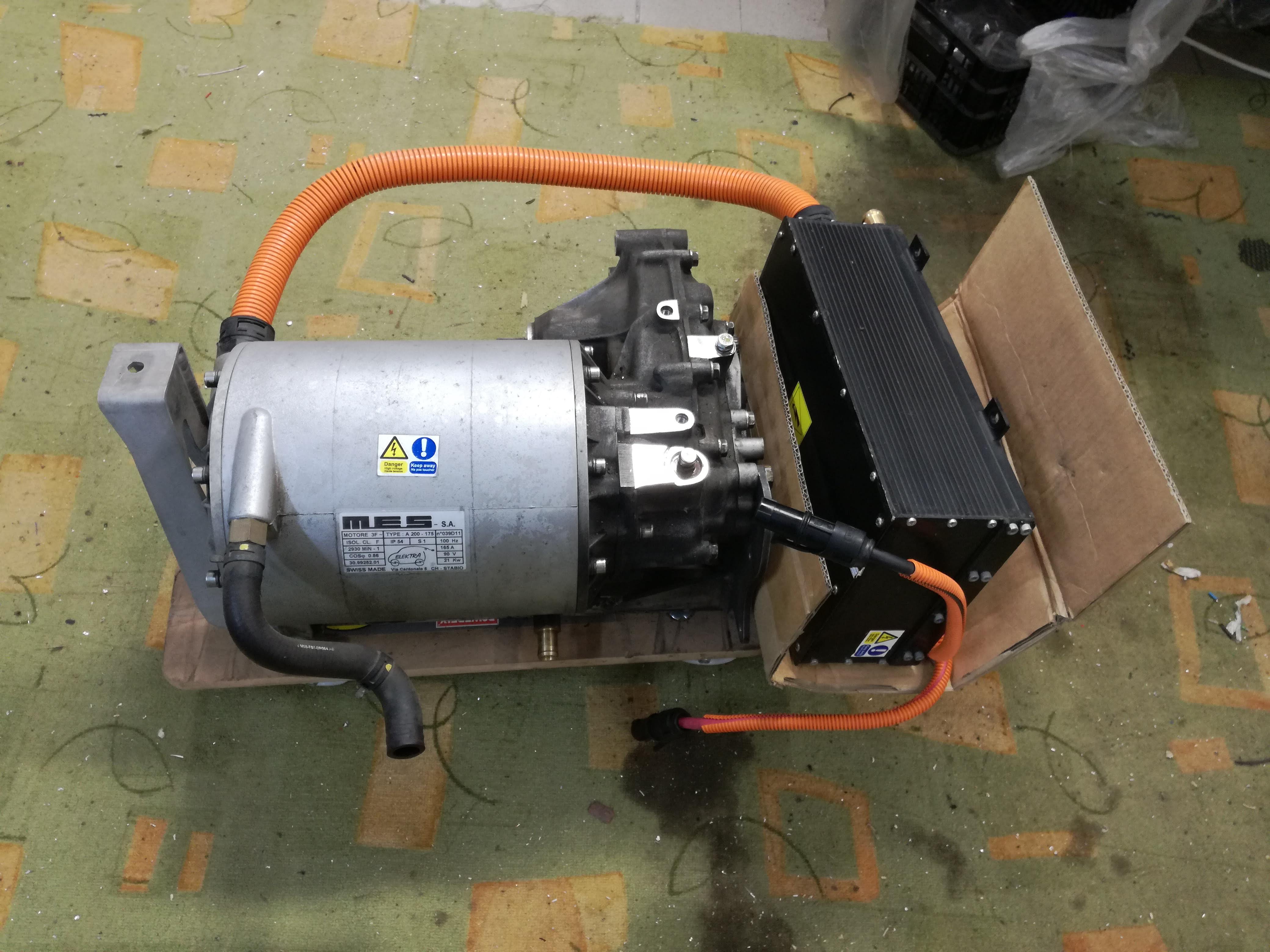

Motor+MES DEA TIM 600 motor controller
skladem
- MES DEA TIM 600 motorcontroller (80 – 400VDC)
- MES DEA A200-175 90VAC 21 Kwatt Nominal AC motor
- Carraro EV differential
-
Motor
- Type 200-175
- Set for a battery Pack Voltage of nominal 289VDC (max. 316VDC & min. 211VDC)
- High Torque & High Power
- Squirrel Cage 3-phase AC Induction Motor
- Nominal Power 24 kW
- Peak Power 48 kW
- Nominal Torque 80 Nm
- Max. Torque 155 Nm
- Liquid cooled (Glicol+H2O)
- Weight 53 kg
- Nominal speed 2950 rpm.
- Max. speed 9000 rpm.
- Cos Φ=0.83
- Phase Voltage U=80 V
- Phase Current I=150 A (Peak)
- f=100 Hz
- Dimension A: 341 mm.
- Dimension B: 20 mm.
- Protection IP54
Mes-Dea-Tim-600
